SKU: SPE-PCE432-1028

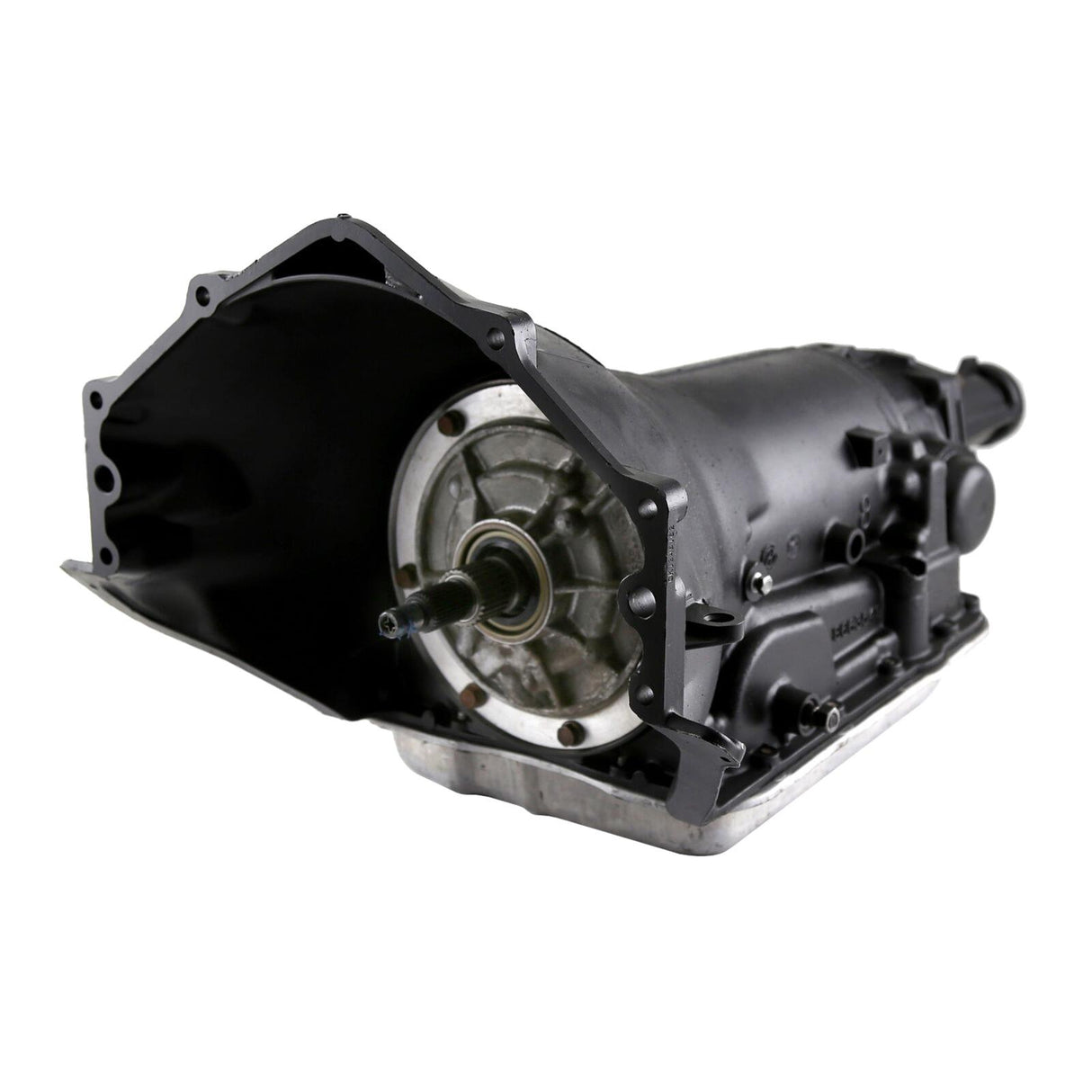

TRANSMISSION TH700R4 550HP NON LOCKUP

$5,998.00

Prices exclude GST. GST will be added at checkout.


Speedmaster Automatic Transmission, Forward Shift Pattern, Automatic, Manual Valve Body, Chevy, 4L60/700R4, Each

Number of Gears: 4
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Forward
Valve Body Style: Automatic/Manual
Remanufactured: No
Transmission Advertised Horsepower Rating: 550
Torque Converter Included: No
Trans-Brake Included: No
Lockup Compatible: No
Transmission Pan Style: Deep
Transmission Pan Material: Aluminum
Transmission Pan Finish: Natural
Tailshaft Length (in.): 7.500 in.
Input Spline Quantity: 30
Input Shaft Material: Hardened steel
Input Shaft Style: TH700R4
First Gear Ratio (Automatic Transmissions): 3.06
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Natural
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Dipstick Included: No
Notes: Will not replace 4L60E applications (post 1993).

USA Performance Turbo 700R-4 GM Performance Rebuilt Overdrive Transmissions

USA Performance Turbo 700R-4 GM Performance rebuilt overdrive transmission are complete ready-to-run units for high performance street and mild strip use. The automatic transmissions provide firm shifts and feature a standard shift pattern; they're the finest transmissions available for street and strip use. These rebuilt 700R-4s use a mechanical-type speedometer connection, and they're suitable for use behind engines producing up to 450 lbs.-ft. of torque. (They will not replace 4L60E applications, post-1993.) USA Performance Turbo transmissions include a Corvette 2-4 servo assembly, new overdrive sprag assembly, new boost valve, new pressure regulator valve, and new governor with gear.
