SKU: MSD-828583

MSD COIL PACK GM LS1/6 BLACK

$1,398.00

Prices exclude GST. GST will be added at checkout.

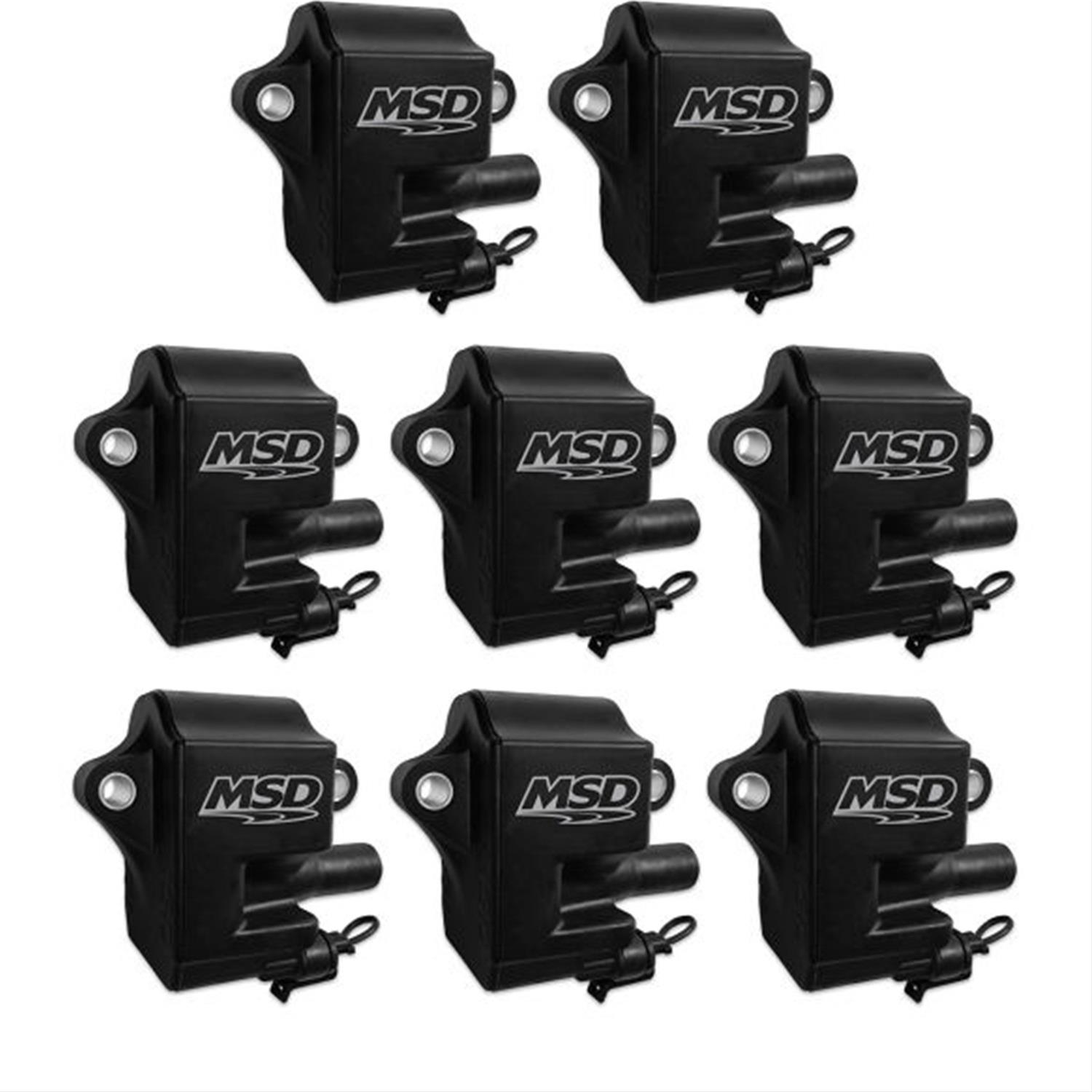

MSD Ignition Coil, MSC II Coil Pack, D580 Style, Epoxy, Square, Black, GM LS1/LS6, Set of 8

Primary Resistance: 0.730 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Female/Socket
Coil Color: Black
Maximum Voltage: 40,000 V
Turns Ratio: 56:1
Secondary Resistance: 3.70K ohms
Inductance: 3.60 mH
Peak Current: 124 mA
Spark Duration: 1,110 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold as a set of 8.
Notes:
Fits LS1/LS6 engine models with spark plug wire and coil connector entering the same side of the coil. Please see application notes regarding engine VIN and fitment. Click the "Charts & Guides" tab for help with coil identification. All specifications listed are measured at 14 V.

MSD Multiple Spark Coils and Coil Kits

MSD Ignition's Multiple Spark Coils (MSC) will fit in place of the stock GM LS coils and connect directly to the factory connectors. Once installed, you'll have the power and performance of higher energy sparks, crowned with MSD's multiple spark discharge. Increased spark energy and voltage, along with multiple spark capabilities, help improve the combustion process of the fuel mixture to create an efficient burn. This results in improved throttle response, smooth idle and quick starts, plus increased high rpm performance!
