SKU: MSD-8252

MSD COIL. HVC RACE COIL

$398.00 $529.00

Brand: MSD Ignition
Manufacturer's Part Number: 8252
Coil Style: Remote mount
Primary Resistance: 0.020 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Blue
Maximum Voltage: 42,000 V
Turns Ratio: 100:1
Secondary Resistance: 1.38K ohms
Inductance: 7.0 mH
Peak Current: 300 mA
Spark Duration: 200 uS
Mounting Bracket Included: Yes
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 5.000 in.
Length (in.): 5.000 in.
Width (in.): 5.000 in.
Quantity: Sold individually.
Notes: Designed for high rpm, long duration applications.

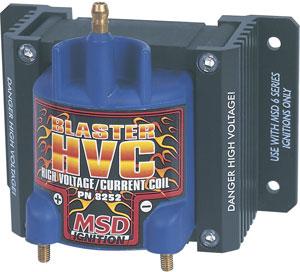

MSD Blaster HVC Ignition Coils

MSD Blaster HVC ignition coils are designed for high-rpm, long-duration applications, such as road course and Circle Track racing using the MSD 6 Series ignition. These units feature a 100:1 turns ratio, as well as lower primary resistance to produce high-voltage output. Windings are encased in a durable epoxy and secured with extruded brackets. They also feature a spark plug style terminal and a threaded brass primary stud. These ignition coils are CARB EO-approved and are supplied with rubber shock mounts to help them resist coil vibration. Equip your performance vehicle with MSD Blaster HVC ignition coils and feel the power!
