SKU: MSD-8251

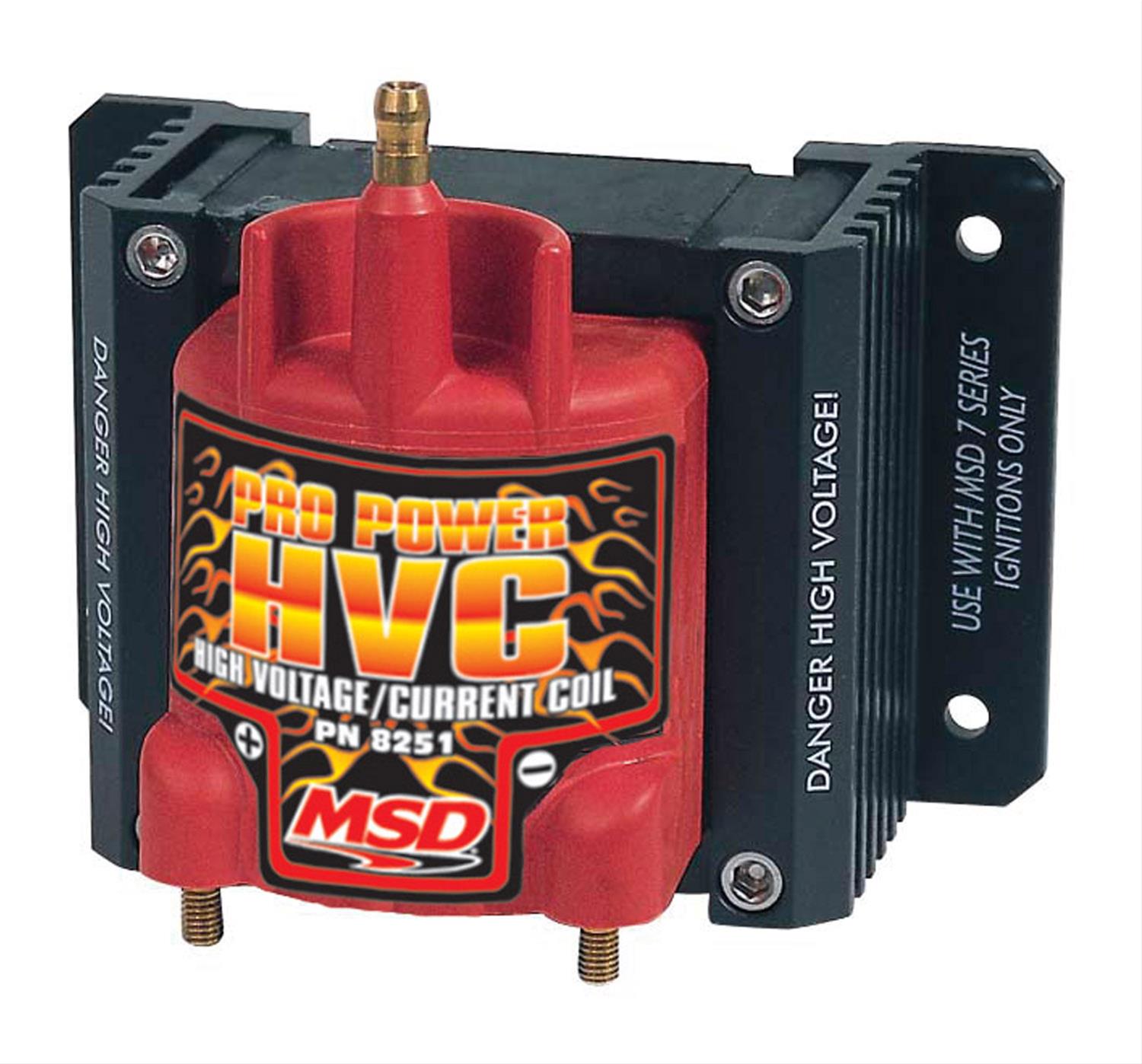

HVC COIL SUITS 7AL SERIES IGNITION

$249.00 $327.60

Prices exclude GST. GST will be added at checkout.
Brand: MSD Ignition
Manufacturer's Part Number: 8251
Coil Style: Remote mount
Primary Resistance: 0.040 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Red
Maximum Voltage: 45,000 V
Turns Ratio: 85:1
Secondary Resistance: 86.00K ohms
Inductance: 1.00 mH
Peak Current: 1.1 amps
Spark Duration: 150 uS
Mounting Bracket Included: Yes
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 5.000 in.
Length (in.): 5.000 in.
Width (in.): 5.000 in.
Quantity: Sold individually.
Notes:
For use with MSD 7, 8, or 10 Plus ignition systems only.

MSD Pro Power HVC Coils

MSD HVC coils are designed for racing applications using an MSD 7, 8, or 10 series ignition. Due to their unique design, the Pro Power HVC coils are perfect for long duration racing events or on the street. A spark plug-style terminal is used to grip the secondary wire, and a Weathertight connector is supplied for a positive connection.
