SKU: AF49-1008

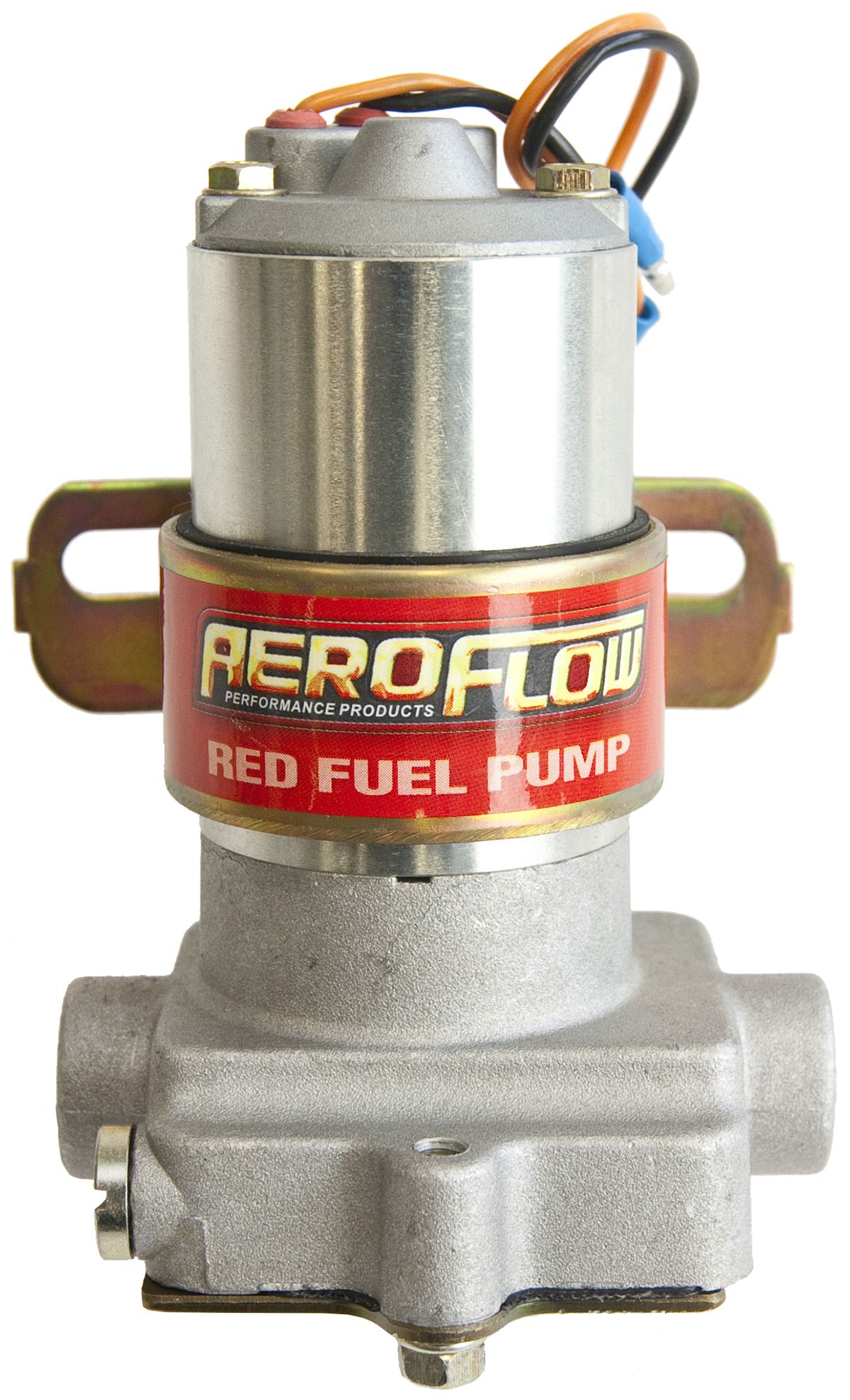

AEROFLOW ELECTRIC FUEL PUMP RED 97GPH

$199.00

Aeroflow Red 97GPH Fuel Pump.

The Red fuel pump is a low pressure fuel pump which operates at a free flow of 97GPH at a set pressure of 7psi (0.48BAR) and does not require the use of a fuel regulator. This meets the flow requiremetns of most regular carburettor applications. This motor draws 2 amps of current and an 8amp fuse is recommended.

Specifications:

Inlet/Outlet Ports: 3/8" NPT

Overall Length: 93mm (3-21/32")

Overall Width: 79mm (3-7/64")

Overall Height: 140mm (5-33/64")

Centre To Centre Mounting Tabs: 60mm (2-23/64")

Compatible with Unleaded fuel only.

Note: These fuel pumps MUST be located below and as close to the fuel tank as possible. This is necessary to allow for an adequate fuel supply. It is designed to push the fuel and not pull the fuel out of the tank. The pump should be mounted on the chassis, in a vertical position with the pump motor at the top.
