SKU: EAG-CRS5090F3D

CONROD SET ESP H-BEAM SB FORD

$949.00

Prices exclude GST. GST will be added at checkout.


Manufacturer's Part Number: CRS5090F3D
Connecting Rod Length Center to Center (in.): 5.090 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.912 in.
Rod Journal Diameter (in.): 2.123
Big End Bore Diameter (in.): 2.2394
Quantity: Sold as a set of 8.
Cap Retention Style: Through-bolt
Big End Width (in.): 0.831
Clearanced for Stroker: No
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: 8740 chromoly steel
Fastener Tensile Strength (psi): 160,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 590
Pin End Width (in.): 1.060 in.
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: No
Connecting Rod Color: Natural

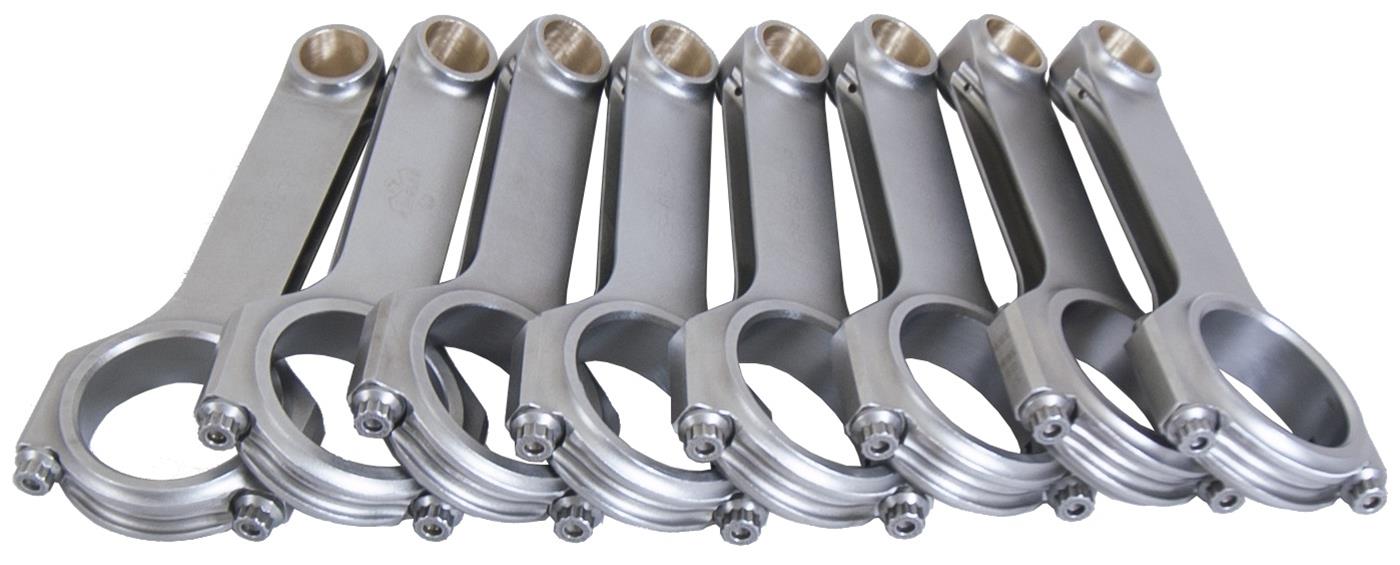

Eagle CRS Lightweight H-Beam Connecting Rods

Eagle now offers their CRS lightweight H-beam connecting rods in their Featherweight series. The lighter design provides less rotating mass for flawless high-rpm performance. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides superb strength at a fraction of the weight of most other rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and shot-peened to stress-relieve the metal. The rods have a stout cap screw attachment with precision cap alignment sleeves to positively locate each rod cap. They come with 220,000 psi rated ARP 2000 cap screw rod bolts, instructions, and rod bolt lubrication.

Need advice?

Give us a call on 0800 327 350 or email sales@silvesterv8.co.nz

Payment & Security

Payment methods

  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Silvester V8

CONROD SET ESP H-BEAM SB FORD

$949.00
Manufacturer's Part Number: CRS5090F3D
Connecting Rod Length Center to Center (in.): 5.090 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.912 in.
Rod Journal Diameter (in.): 2.123
Big End Bore Diameter (in.): 2.2394
Quantity: Sold as a set of 8.
Cap Retention Style: Through-bolt
Big End Width (in.): 0.831
Clearanced for Stroker: No
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: 8740 chromoly steel
Fastener Tensile Strength (psi): 160,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 590
Pin End Width (in.): 1.060 in.
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: No
Connecting Rod Color: Natural

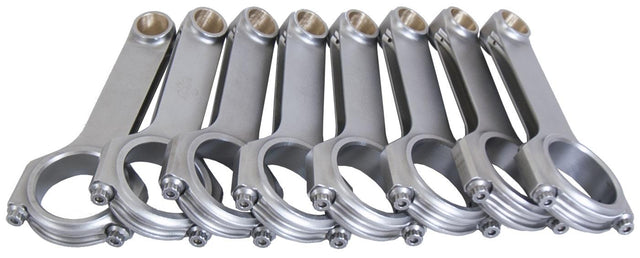

Eagle CRS Lightweight H-Beam Connecting Rods
