SKU: MSD-8226

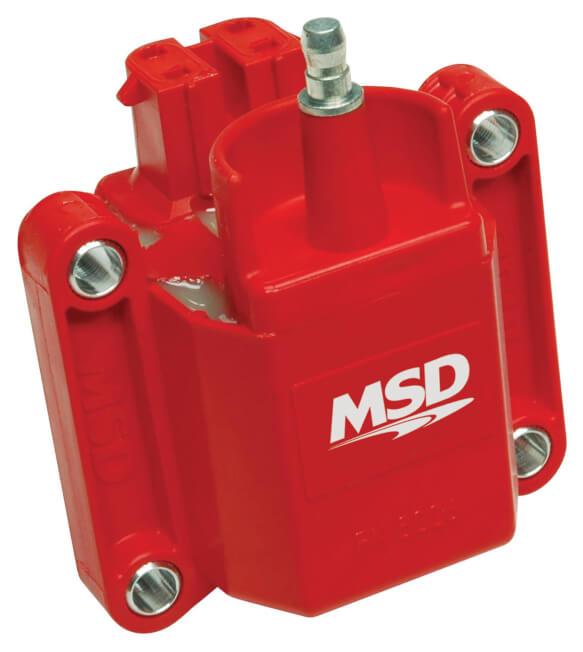

MSD BLASTER GM DUAL CONNECTOR COIL 8226

$182.00

Prices exclude GST. GST will be added at checkout.


Brand: MSD Ignition
Manufacturer's Part Number: 8226
Coil Style: Remote mount
Primary Resistance: 0.680 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Red
Maximum Voltage: 44,000 V
Turns Ratio: 75:1
Secondary Resistance: 4.80K ohms
Inductance: 5.60 mH
Peak Current: 220 mA
Spark Duration: 300 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Notes:
When using an MSD ignition system, a wiring harness must be purchased.

MSD Blaster GM Coils

MSD Blaster coils give your GM maximum voltage output! With windings and construction similar to MSD's Blaster 2 coils, these have an increased turns ratio, plus lower primary resistance than your stock coils. The Blasters will work with stock GM coil ignition systems, as well as MSD-equipped cars and trucks. Looking to get a little more output voltage from your GM ignition system? Just bolt in one of these MSD Blaster Coils.
