SKU: MSD-6530

6AL-2 PROGRAMMABLE

$1,167.00 $1,499.00

Prices exclude GST. GST will be added at checkout.

MSD Ignition Box, MSD 6AL-2, Digital CD, Programmable, with Rev Limiter, Red, Each

Ignition Box Output: Capacitive discharge
Circuitry: Digital
Rev Limiter: Yes
Timing Retard: One-stage
Data Acquisition: No
CD Voltage Output to Coil: 535 V
Current Draw: 0.7 amps per 1,000 rpm
Spark Output (millijoules): 135 mJ
Minimum Operating Voltage: 10 V
Maximum Operating Voltage: 18 V
Length (in.): 7.000 in.
Height (in.): 2.000 in.
Width (in.): 4.000 in.
Ignition Box Color: Red
Coil Included: No
Warranty: 1-year
Notes: PC cable included.

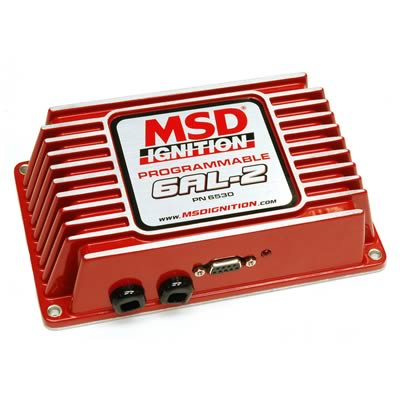

MSD Programmable Digital 6AL-2 Ignition Boxes

These new MSD programmable digital 6AL-2 ignition boxes give you the ability to tune an ignition curve or boost timing map from a PC. You still receive the 20 degree duration of multiple sparks combined with higher output to ensure complete combustion. The all-new MSD programmable digital 6AL-2 ignition boxes will easily connect to nearly any 12 V negative ground distributor system, even Hall-effect pickups. They offer higher output with up to 135mJ and 535 V and accept points and mag pickup triggers.
