SKU: EAG-CRS68003DL19

CONRODS CHEV BB 6.800 LONG L19 BOLT

$998.00

Prices exclude GST. GST will be added at checkout.


Manufacturer's Part Number: CRS68003DL19-1
Connecting Rod Length Center to Center (in.): 6.800 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.990 in.
Rod Journal Diameter (in.): 2.200
Big End Bore Diameter (in.): 2.3250
Quantity: Sold as a Set of 8.
Cap Retention Style: Cap screw
Big End Width (in.): 0.990
Clearanced for Stroker: No
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: L19 alloy
Fastener Tensile Strength (psi): 230,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 805
Advertised Horsepower Rating: 1,500 hp
Pin End Width (in.): 1.125 in.
Weight Matched Set: No
Remanufactured: No
Magnafluxed: Yes
Connecting Rod Color: Shot-peened
Notes:
Custom pistons required when using connecting rods longer than stock length.

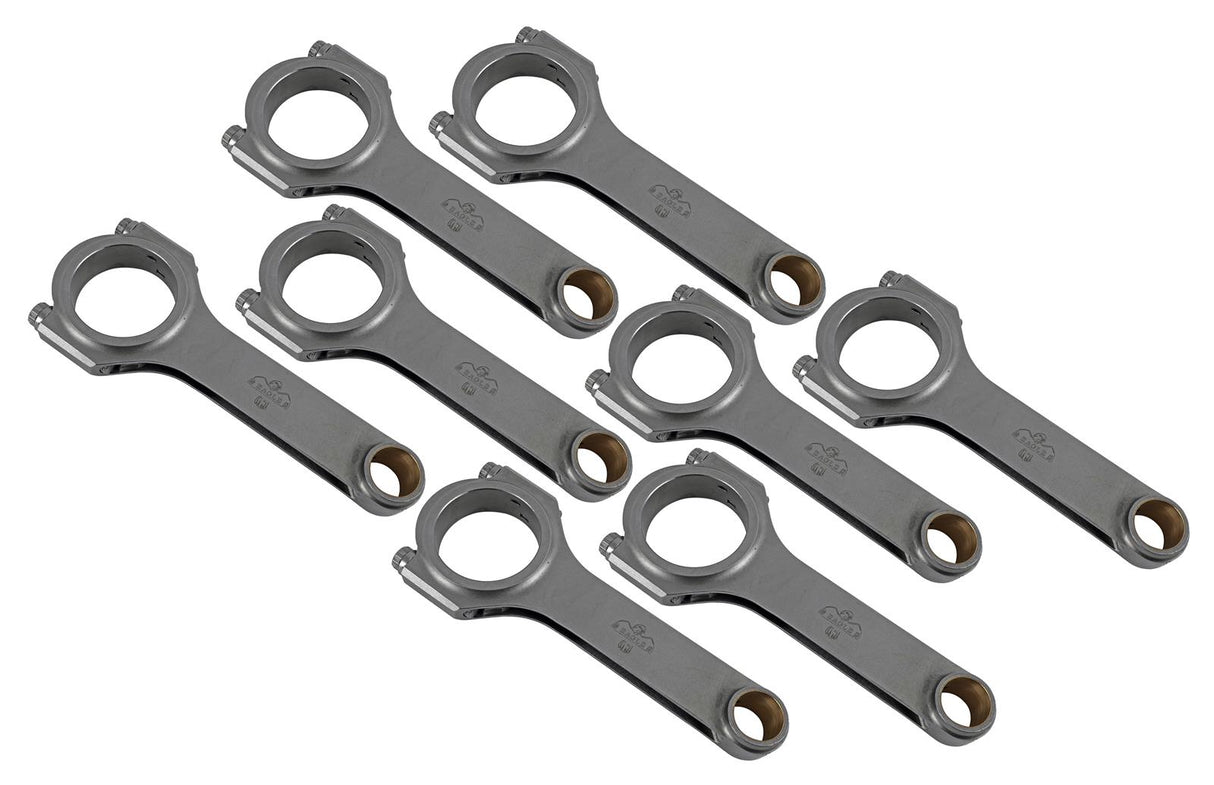

Eagle H-Beam Connecting Rods

Free your engine's horsepower on the wings of Eagle H-beam connecting rods. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and then shot-peened to stress-relieve the metal.

The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models—and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts, or 265,000 psi rated ARP L-19 bolts as upgrades. Instructions and rod bolt lubrication are included. Order the model designed for your vehicle year/make and engine application.

Need advice?

Give us a call on 0800 327 350 or email sales@silvesterv8.co.nz

Payment & Security

Payment methods

  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Silvester V8

CONRODS CHEV BB 6.800 LONG L19 BOLT

$998.00
Manufacturer's Part Number: CRS68003DL19-1
Connecting Rod Length Center to Center (in.): 6.800 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.990 in.
Rod Journal Diameter (in.): 2.200
Big End Bore Diameter (in.): 2.3250
Quantity: Sold as a Set of 8.
Cap Retention Style: Cap screw
Big End Width (in.): 0.990
Clearanced for Stroker: No
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: L19 alloy
Fastener Tensile Strength (psi): 230,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 805
Advertised Horsepower Rating: 1,500 hp
Pin End Width (in.): 1.125 in.
Weight Matched Set: No
Remanufactured: No
Magnafluxed: Yes
Connecting Rod Color: Shot-peened
Notes:
Custom pistons required when using connecting rods longer than stock length.

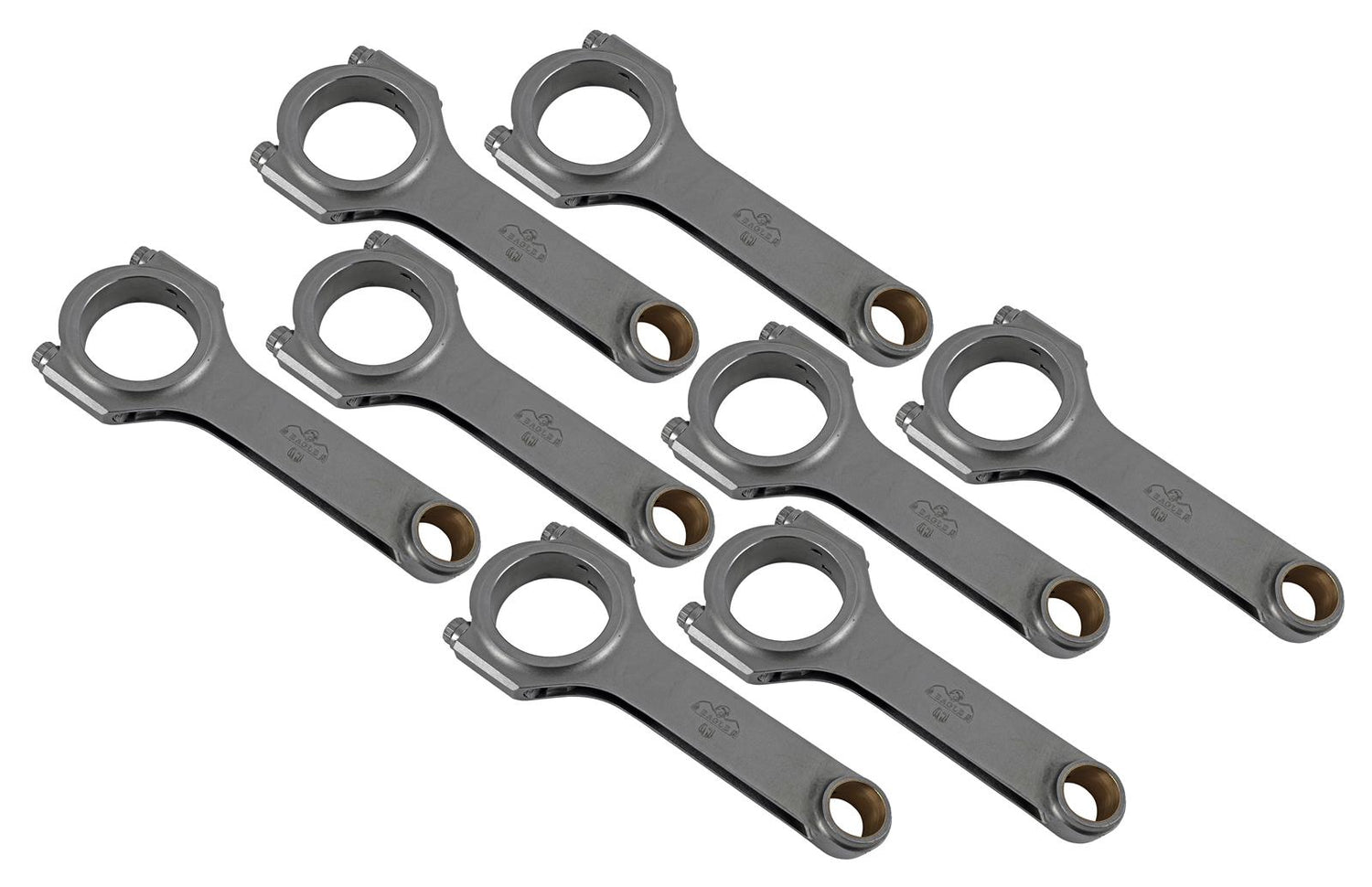

Eagle H-Beam Connecting Rods
