SKU: EAG-CRS6123C3D

CONROD SET. CHRYSLER S/BLOCK.

$998.00

Prices exclude GST. GST will be added at checkout.


Manufacturer's Part Number: CRS6123C3D
Connecting Rod Length Center to Center (in.): 6.123 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.984 in.
Rod Journal Diameter (in.): 2.125
Big End Bore Diameter (in.): 2.2500
Quantity: Sold as a set of 8.
Cap Retention Style: Cap screw
Big End Width (in.): 0.925
Clearanced for Stroker: No
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: 8740 chromoly steel
Fastener Tensile Strength (psi): 160,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 695
Advertised Horsepower Rating: 750 hp
Advertised RPM Rating: 7,500 rpm
Pin End Width (in.): 1.060 in.
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: Yes
Connecting Rod Color: Shot-peened

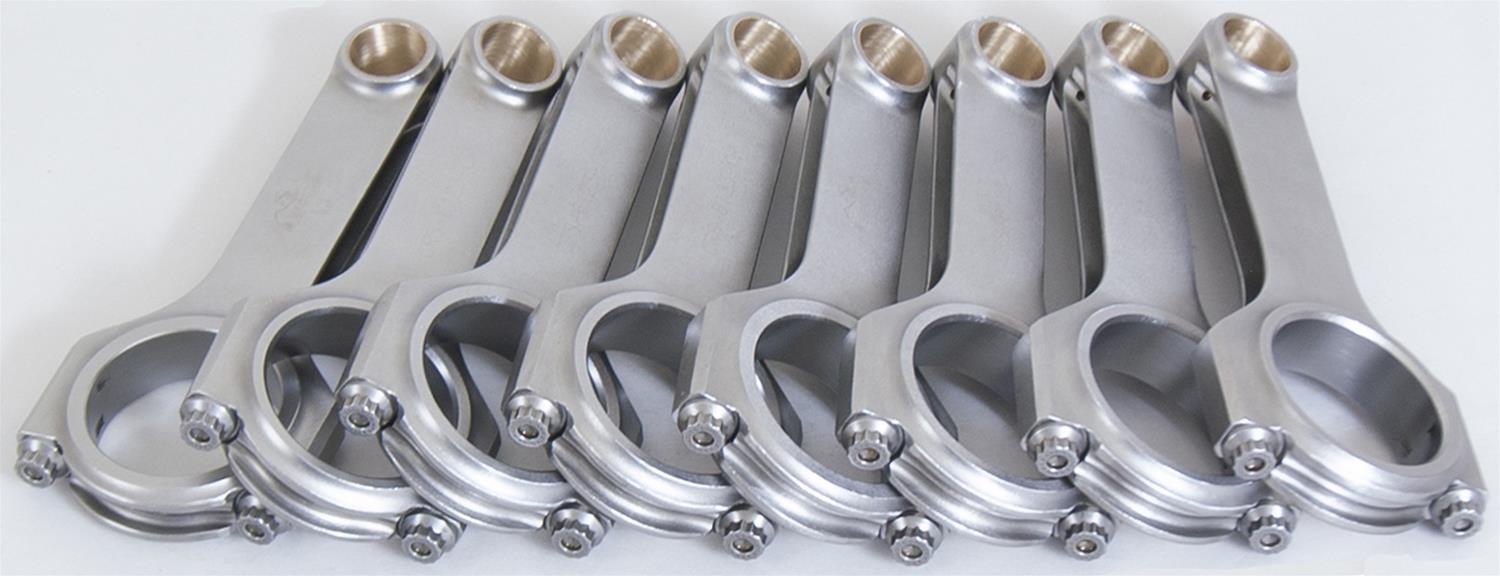

Eagle H-Beam Connecting Rods

Free your engine's horsepower on the wings of Eagle H-beam connecting rods. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and then shot-peened to stress-relieve the metal.

The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models—and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts, or 265,000 psi rated ARP L-19 bolts as upgrades. Instructions and rod bolt lubrication are included. Order the model designed for your vehicle year/make and engine application.
